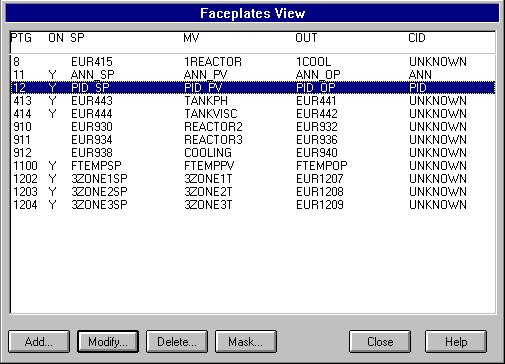

From ONSPEC Configurator or ONSPEC Online Configure Pull-Down, select PIDs (Control Blocks) to bring up a Faceplates View window with all the Control Blocks in the cross-reference database.
Window information includes: the Block Number, the Block Enable Status, the Setpoint (SP), Measured Value (MV) and Output (OUT), ONSPEC Table Locations, and the Block Type (CID) or Algorithm. The list is sorted by Block Number.
You can add, modify, delete a block using the menu. You can select one of the pre-defined blocks and double click it to get into the next menu: the Faceplate and Control Block Menu.
